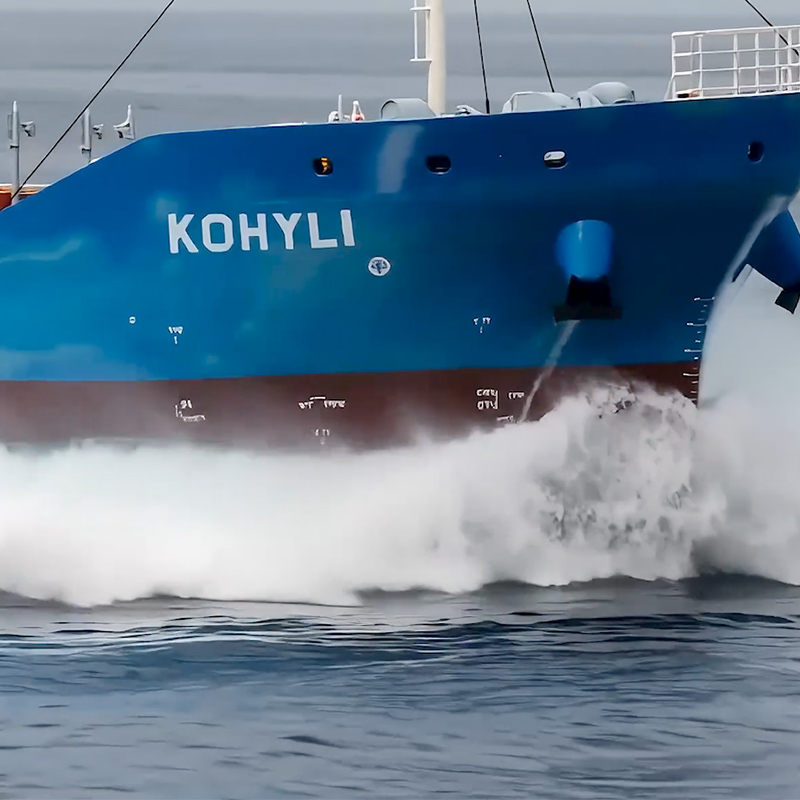

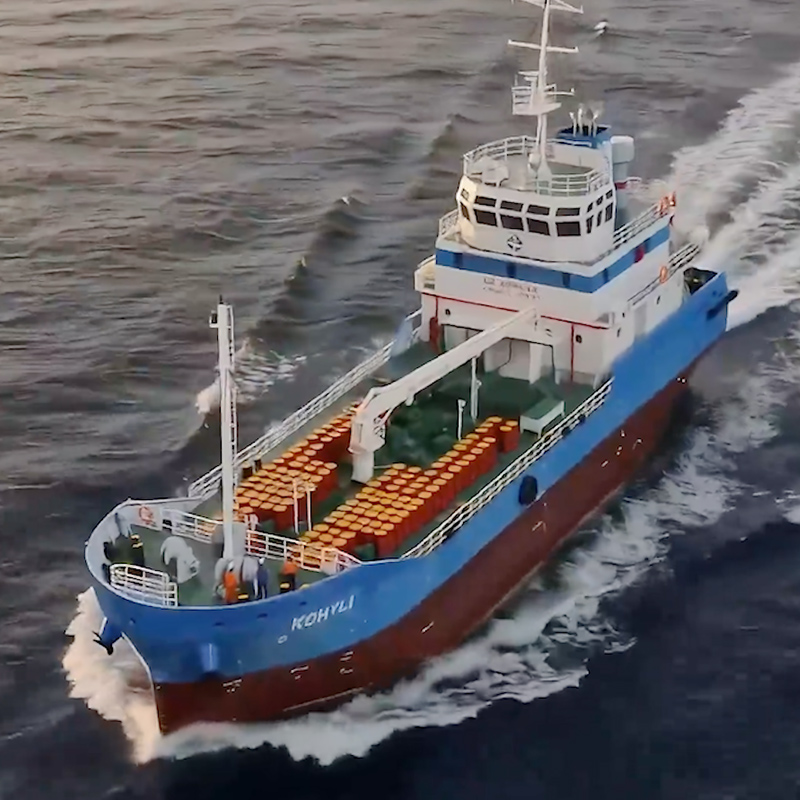

KOHYLI

Length Overall 43.46m
Breadth 11.80m
Depth 5.20 m
Design Draft 4.2m
Cargo Tank Capacity 887m³
Dead weight (DWT) 920 DWT
Main Engine Model YANMAR 6AYM-WSTxYHX-240
Main Engine Power 485kW
Rated Engine Speed 1900r/min
Quantity of Main Engines 2
Speed 10.5 knots
Fuel Oil Tanks Capacity 40m³
Complement 10 persons
Service Area Coastal Waters

Product Details

goods_content

Project Overview

A series of three 920 DWT double-hull product tankers built for a Greek shipowner under ABS classification. Designed for coastal fuel transportation and bunkering operations, the vessels provide a reliable, efficient and cost-effective solution for regional tanker services.

Design & Construction Highlights

Double Hull Construction

· Double-hull and double-bottom arrangement

· Enhanced collision protection

· Improved pollution prevention

Structural Integrity

· Watertight longitudinal bulkheads

· High hull strength and compartment integrity

· Reliable damage resistance

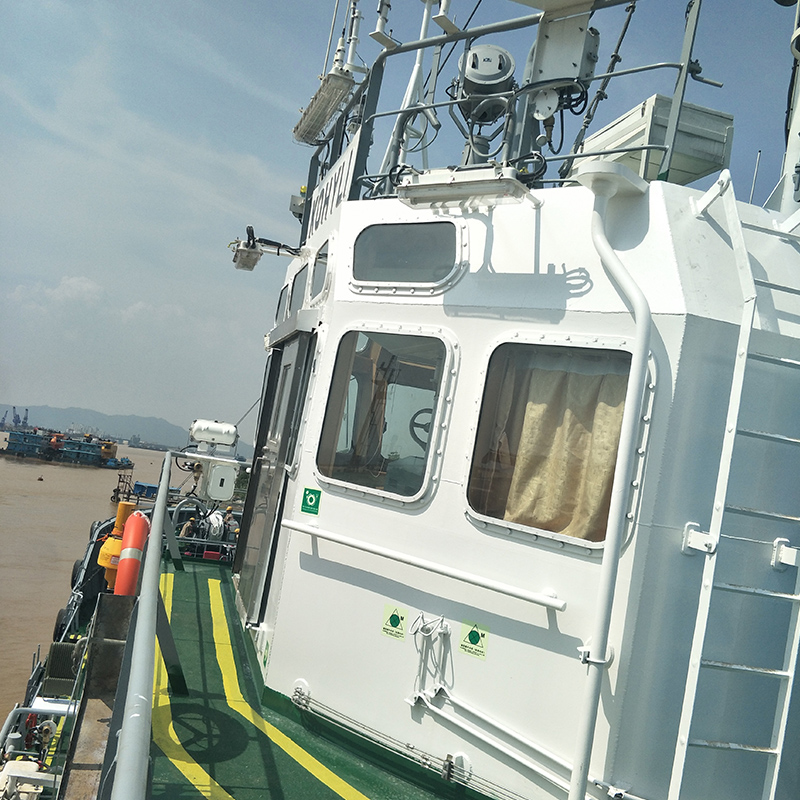

Accommodation & Working Areas

· Dedicated crew accommodation

· Galley and sanitary facilities

· Machinery and cargo pump rooms

· Efficient onboard workflow

Quality Assurance

Construction Control

· ABS classification supervision

· Third-party inspection support

· Dimensional accuracy verification

Welding & Testing

· Vacuum testing of critical welds

· Hydraulic system testing

· Machinery commissioning

Sea Trials

· Operational performance verification

· Safety system validation

· Final delivery acceptance

Vessel Particulars

Item	Specification
Vessel Type	Product Tanker
Classification	ABS
Deadweight	920 DWT
Length Overall	43.46 m
Breadth	11.80 m
Depth	5.20 m
Design Draft	4.20 m
Design Speed	9.8 knots
Service Area	Coastal Operations (50 NM)

Operational Safety & Automation

· ABS UMS Notation – Unattended Machinery Space (UMS) for reduced crew workload and efficient vessel operation.

· CO₂ Fire Protection – Integrated fire suppression system for machinery and pump room safety.

· Bilge Alarm System – Continuous bilge monitoring with wheelhouse alarm indication.

· Centralized Monitoring – Real-time equipment status and alarm management.

· Dual Control Mode – Remote wheelhouse control with local emergency backup operation.

Major Equipment

The vessel is equipped with internationally recognized marine equipment from leading manufacturers in Japan, Canada, the Netherlands, Germany, the United States, Spain, Norway, Singapore, the United Kingdom and South Korea. The selected equipment package ensures reliable performance, operational efficiency and long-term serviceability throughout the vessel's operating life.

Propulsion & Power Generation

· Main Engines: YANMAR (Japan) – 2 × 485 kW

· Diesel Generators: YANMAR (Japan) – 2 × 144 kW

· Original YANMAR control, monitoring and auxiliary systems

Reliable and fuel-efficient propulsion and power generation systems designed for commercial coastal tanker operations.

Steering & Maneuvering Systems

· Steering Gear: KOBELT (Canada)

· Bow Thruster: Veth (Netherlands) – 90 kW

· Bridge Control Console & Main Switchboard: Noris Sibo (Germany)

Providing precise vessel control, improved maneuverability and efficient harbor operations.

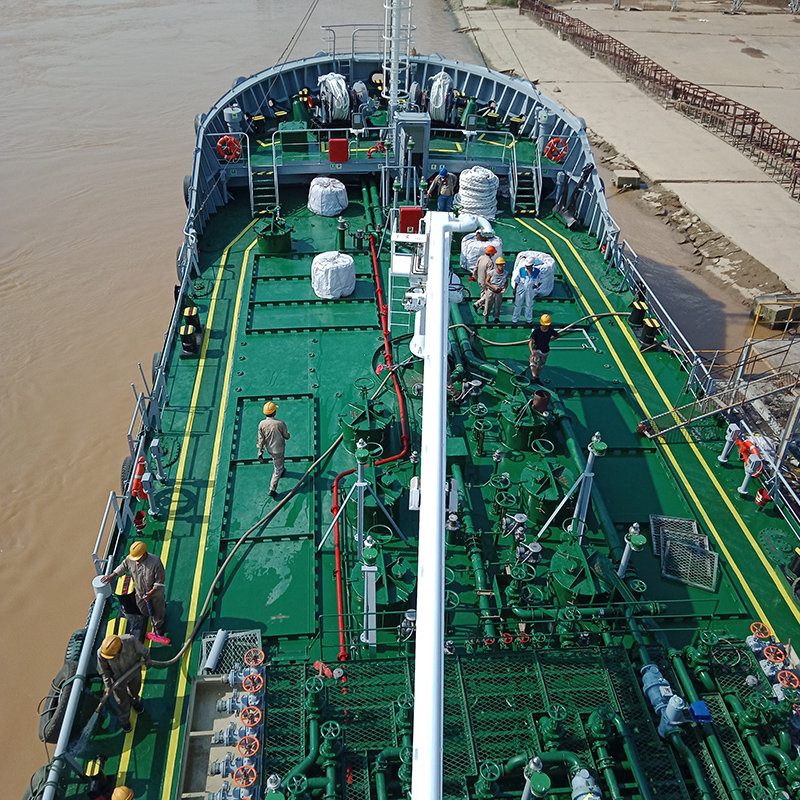

Cargo & Fluid Handling Systems

· Cargo Pumps: BLACKMER (USA)

· Service Pumps: Azcue (Spain)

· High-Velocity Vent Valves: Prosave (Singapore)

· Cargo Flow Meters: BRODIE (USA)

· Valves & Fluid Components: Desmi (Denmark), LK (South Korea)

Designed to ensure safe, efficient and reliable cargo transfer operations.

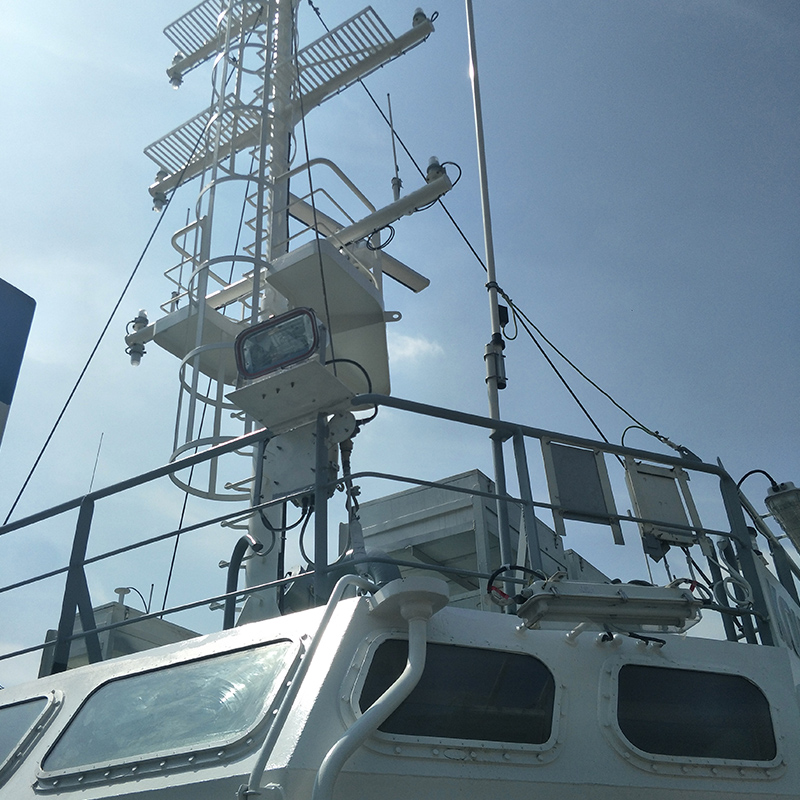

Navigation & Communication Systems

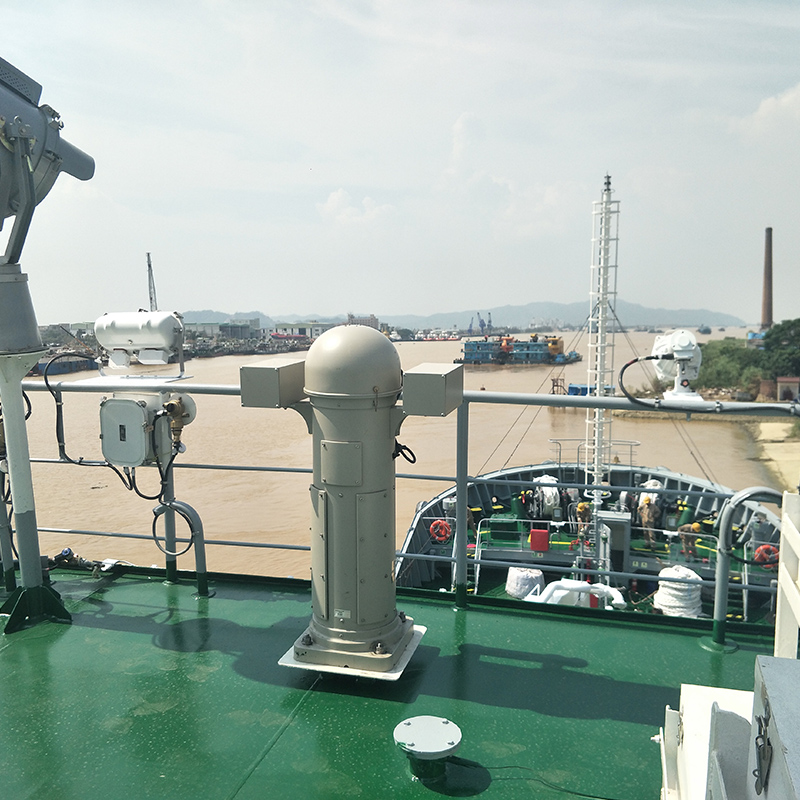

· Integrated Navigation Package: FURUNO (Japan)

· Magnetic & Gyro Compasses: TOKYO KEIKI (Japan)

· Emergency Communication Equipment: OCEAN SIGNAL (United Kingdom)

Meeting international navigation and coastal operational requirements.

General & Safety Equipment

· Air Compressors: Sperre (Norway)

· Shaft Bearings & Stern Tube System: Thordon (Canada)

· Marine Growth Prevention System: KC (South Korea)

Enhancing operational reliability while reducing maintenance requirements.

Key Equipment Suppliers

System	Brand	Country
Main Engines & Generators	YANMAR	Japan
Steering Gear	KOBELT	Canada
Bow Thruster	Veth	Netherlands
Cargo Pumps	BLACKMER	USA
Service Pumps	Azcue	Spain
Navigation Equipment	FURUNO	Japan
Compass Systems	TOKYO KEIKI	Japan
Air Compressors	Sperre	Norway
Shaft Bearings	Thordon	Canada
