SHENG HUA 632

Length Overall 79.80m
Breadth 12.50m
Depth 5.20 m
Design Draft 4.65m
Cargo Tank Capacity 2600m³
Dead weight (DWT) 2500 tonnes
Main Engine Model 6320ZCd－4
Main Engine Power 1324kW
Rated Engine Speed 500r/min
Quantity of Main Engines 1
Speed 11.5 knots
Fuel Oil Tanks Capacity 100 tonnes
Complement 13 persons
Service Area 100 tonnes of fuel oil and 30–50 tonnes of diesel oil

Product Details

goods_content

Vessel Introduction

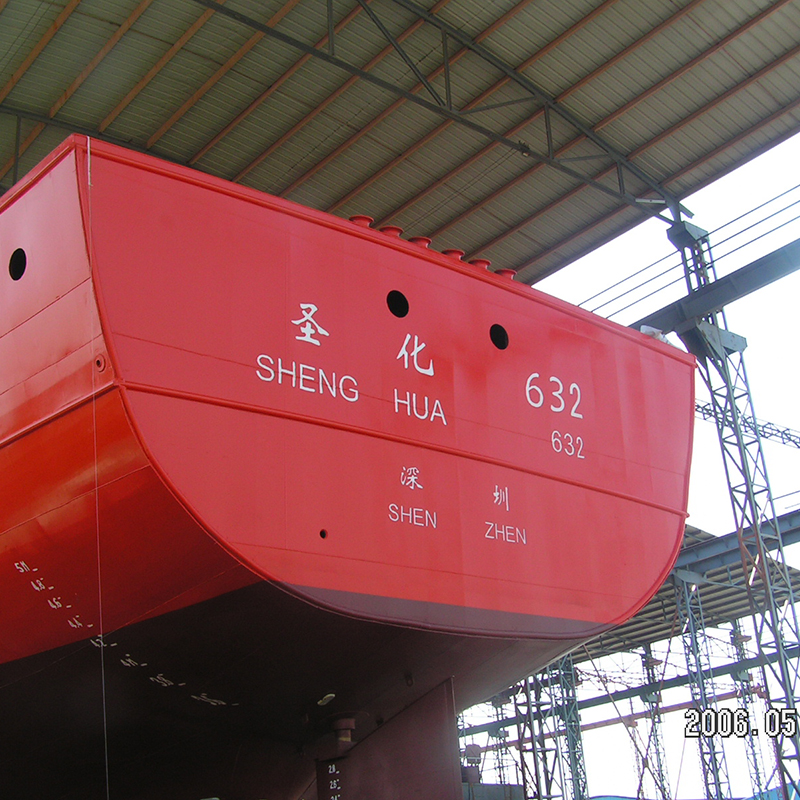

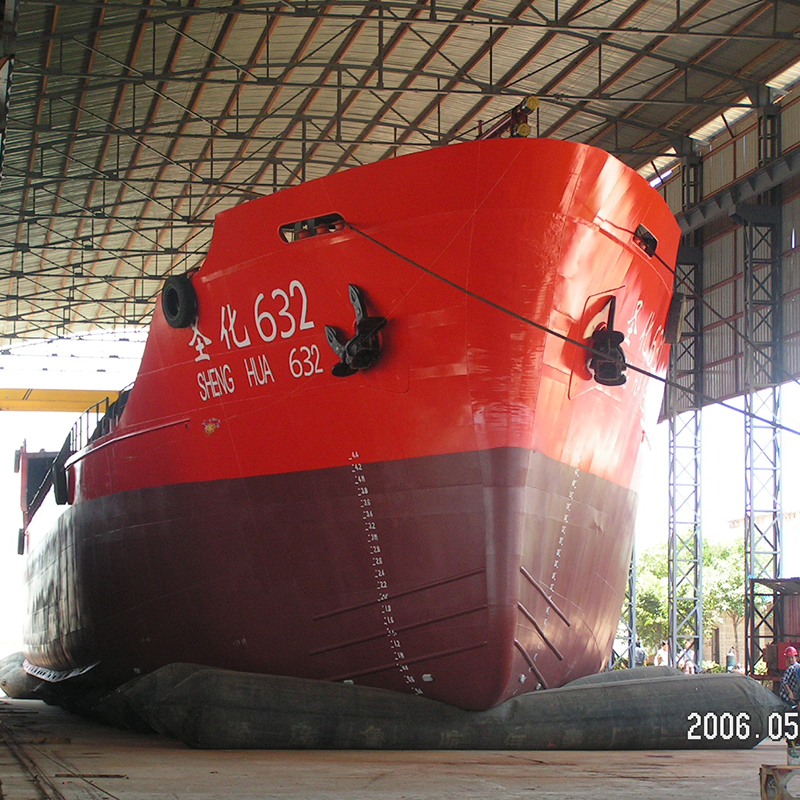

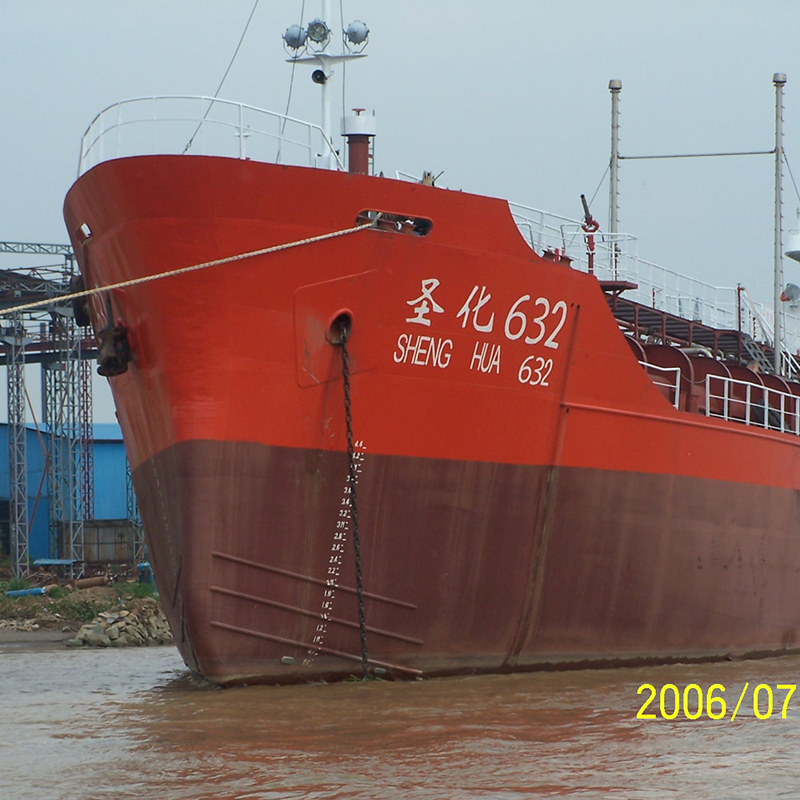

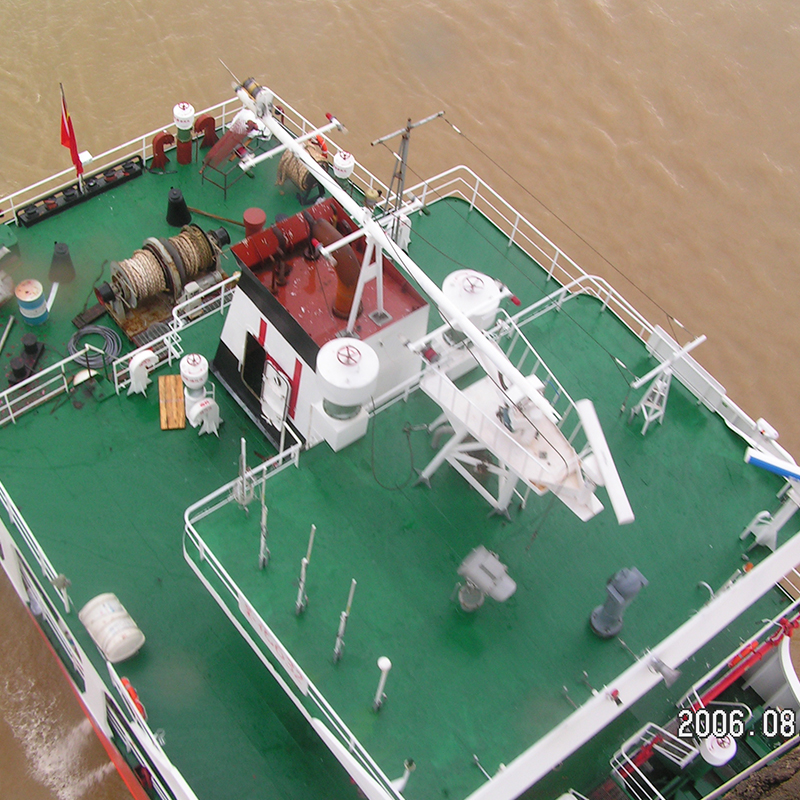

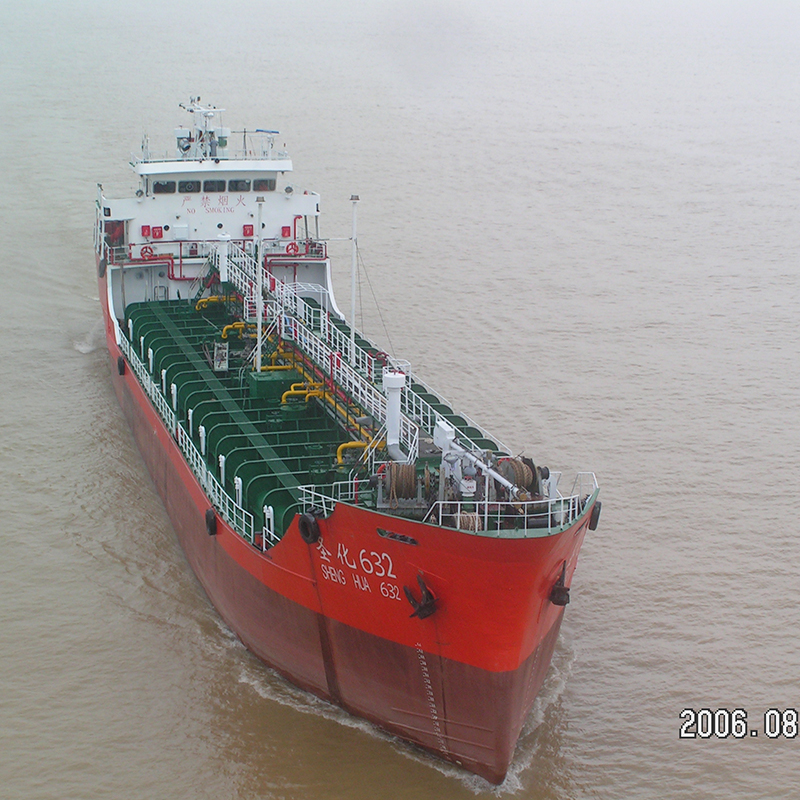

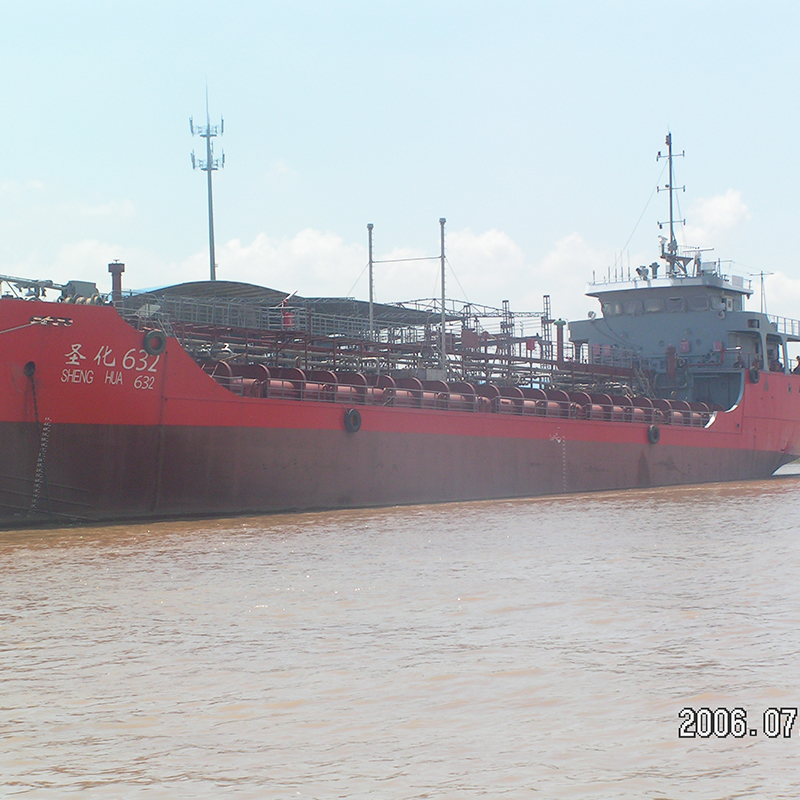

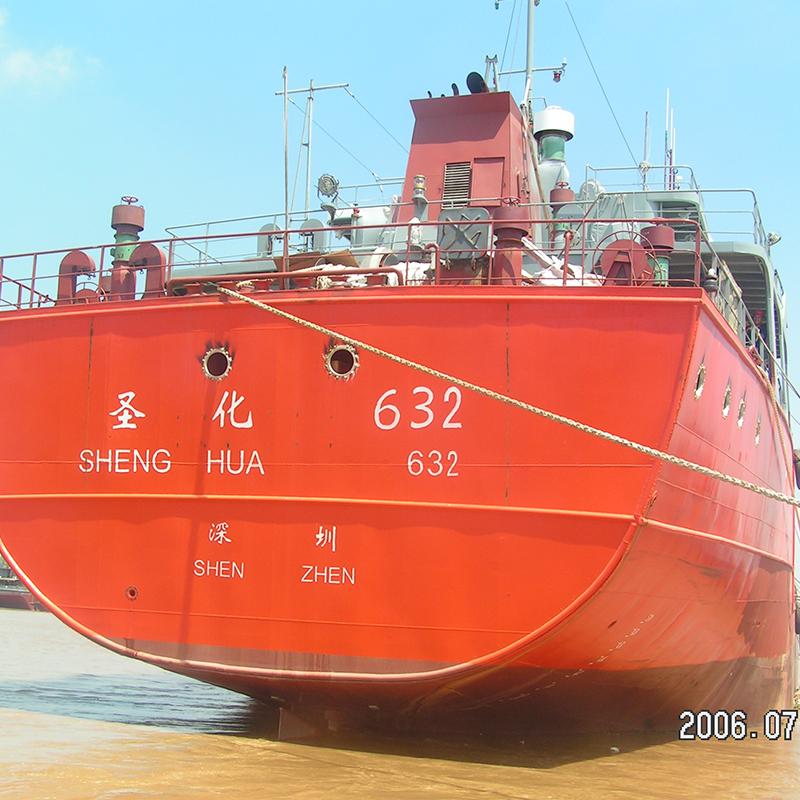

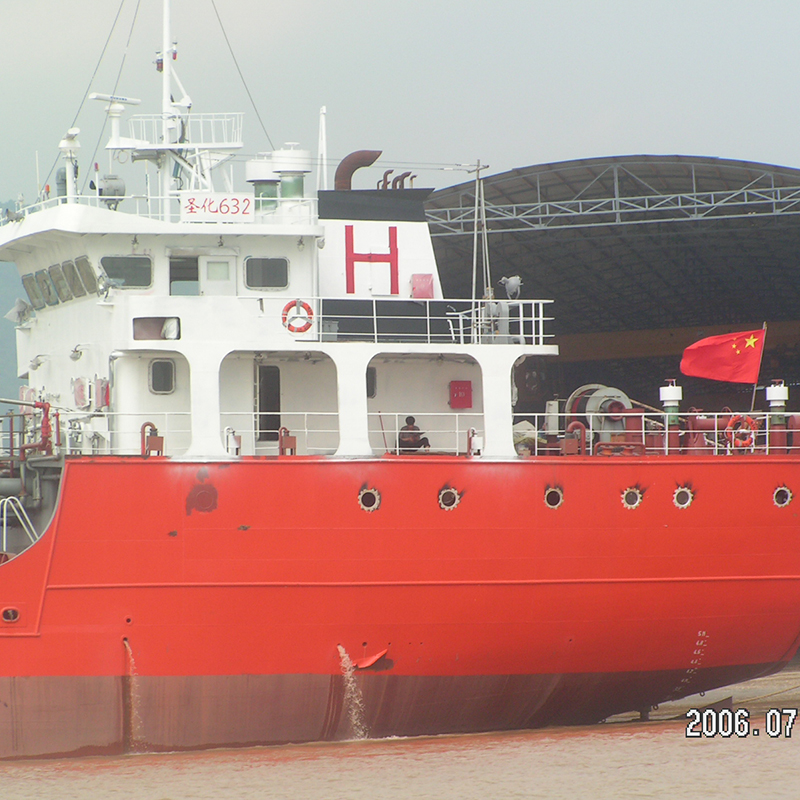

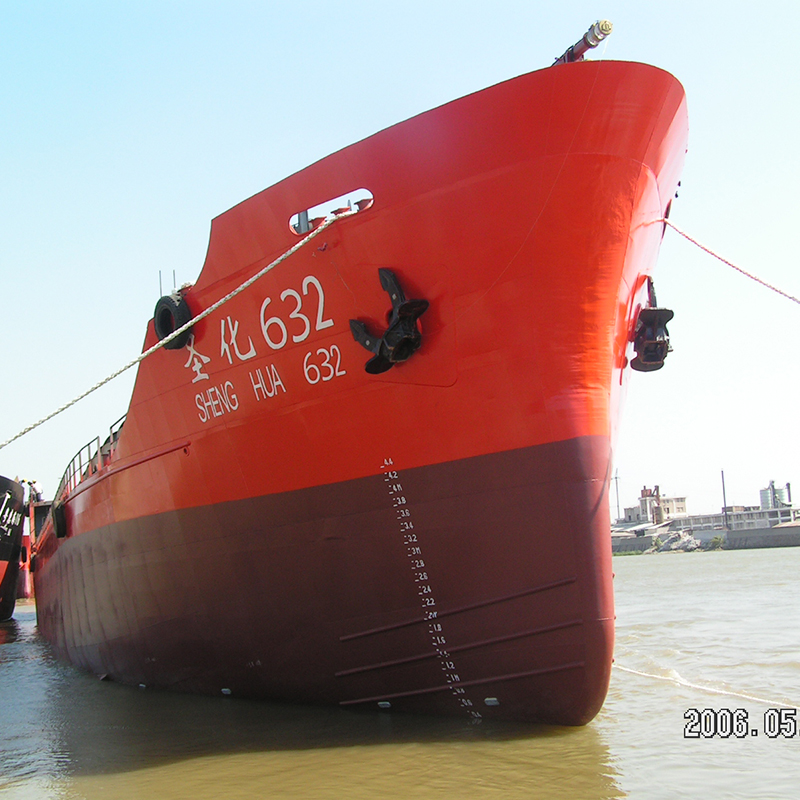

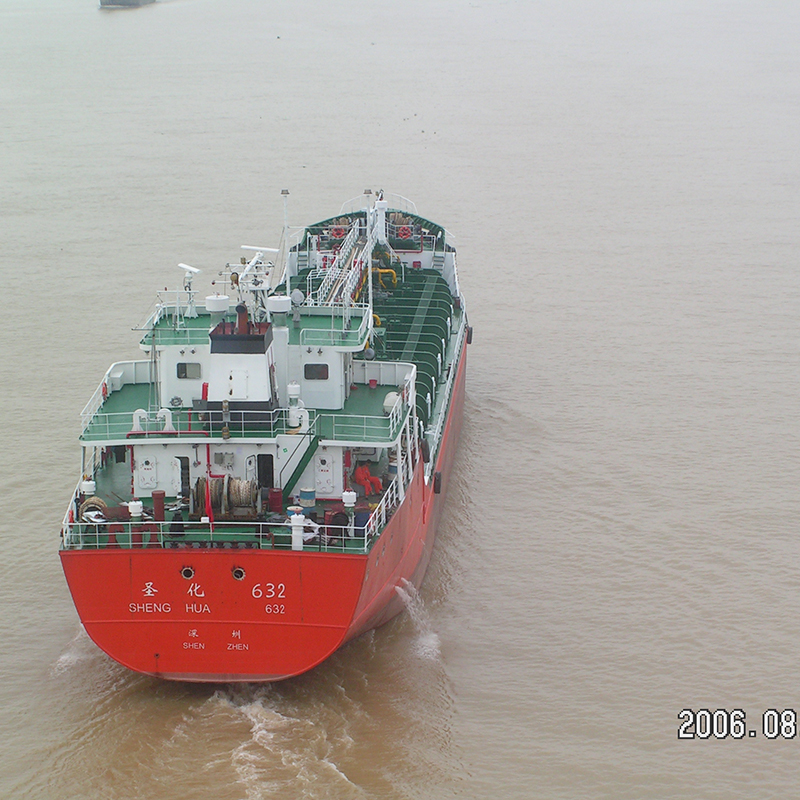

SHENG HUA 632 is a 2,600m³ single-engine, single-screw coastal chemical tanker designed and built in accordance with the latest requirements of the China Classification Society (CCS).

Class Notation:
★CSA5/5 Chemical Tanker, Type 2 & 3; Oil Tanker F.P. ≤ 60°C; Great Coastal Service; ESP.

The vessel is designed to transport Type II and Type III bulk chemicals as well as refined petroleum products with flash points below 60°C. Fully compliant with domestic coastal navigation regulations, she is an ideal solution for short- and medium-distance coastal transportation of hazardous liquid cargoes.

Key Features

Fully Compliant Design

Built to meet both CCS classification requirements and Chinese coastal shipping regulations, ensuring safe and reliable operation in domestic waters.

Reliable and Economical Propulsion

Powered by a 1,324 kW 6320ZCd-4 main engine, coupled with a dedicated gearbox and shafting system, the vessel delivers stable propulsion performance, excellent fuel economy, and dependable operation under coastal trading conditions.

Continuous Power Supply

Equipped with two 90 kW main generator sets and a 50 kW harbor generator, providing uninterrupted electrical power during both navigation and port operations.

Efficient Cargo Handling System

The vessel features twin screw cargo pumps and a stripping pump system, delivering high loading and unloading efficiency. The cargo piping system incorporates comprehensive anti-static and explosion-proof protection, making it highly suitable for chemical transportation.

Advanced Safety Systems

Designed to meet the stringent safety requirements of chemical tankers, the vessel is equipped with:

· CO₂ fixed fire-extinguishing system

· Deck foam fire-fighting system

· Explosion-proof ventilation system

· Anti-static grounding system

· Cargo level, temperature, and pressure alarm systems

Easy Maintenance and Low Operating Costs

The machinery spaces are arranged in a compact and efficient layout, with highly standardized equipment that simplifies maintenance, reduces operating costs, and maximizes operational availability.

Engine Room

Wheelhouse

2 Wheelhouse

Switchboard
