YUE HUI HAI

Length Overall 68.00m
Breadth 12.00m
Depth 5.00m
Design Draft 3.90m
Cargo Tank Capacity 1898m³
Dead weight (DWT) 1920 tonnes
Main Engine Model 2 × 6210ZLC-3 / 6210ZLCZ-3
Main Engine Power 551 kW each
Rated Engine Speed 750 rpm
Quantity of Main Engines 2
Speed 10 knots
Fuel Oil Tanks Capacity 40 tonnes
Complement 12 persons
Service Area Coastal Waters

Product Details

goods_content

Vessel Introduction

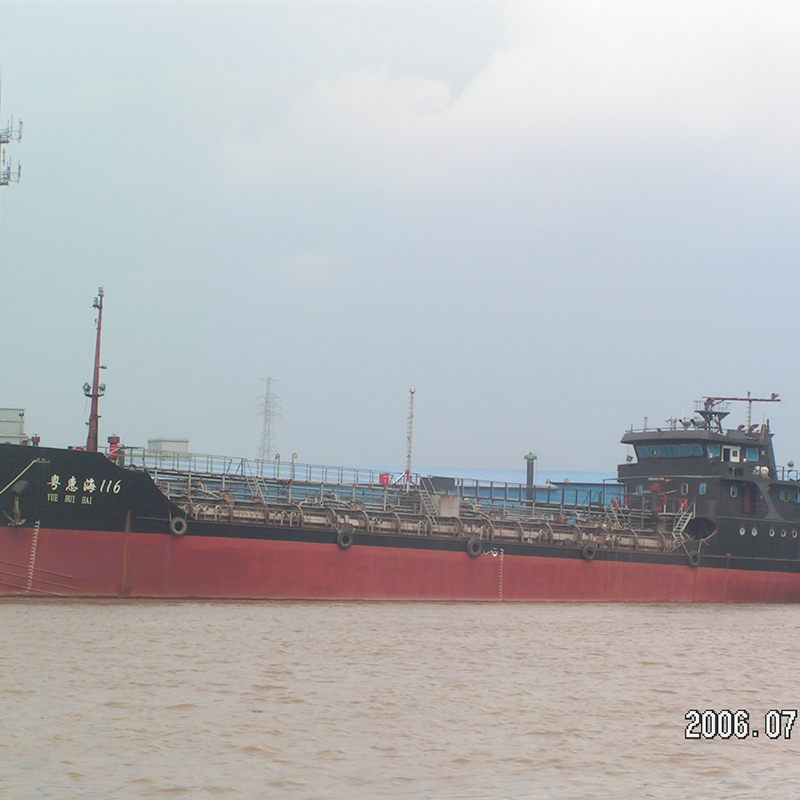

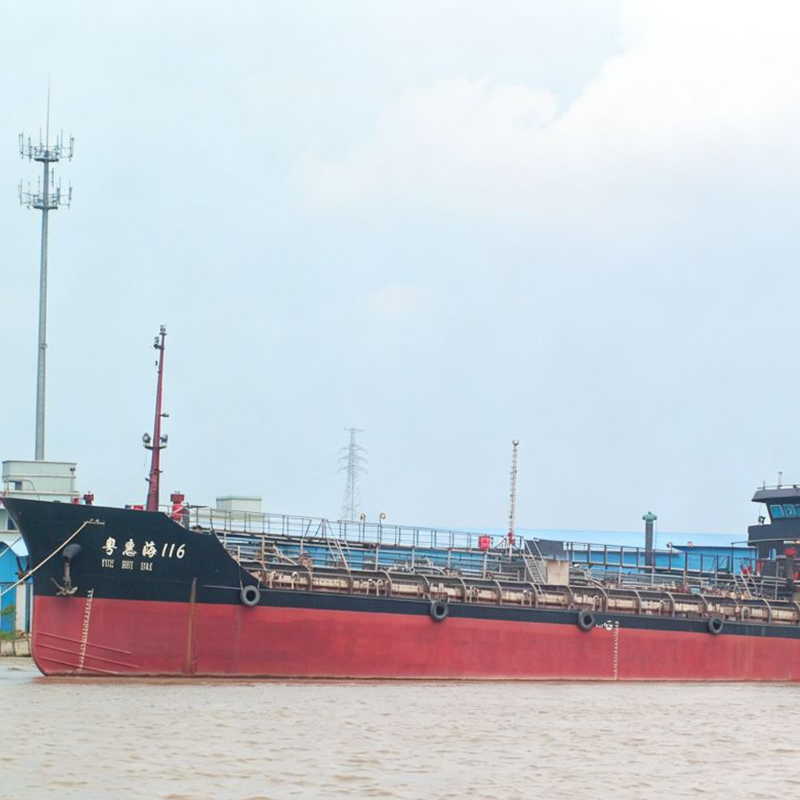

YUE HUI HAI is a 1,800m³ coastal chemical tanker designed and built in accordance with the latest requirements of the China Classification Society (CCS). The vessel was reviewed and approved by the CCS Guangzhou Plan Approval Center and has been classed and certified accordingly.

Class Notation:
★CSA5/5 Chemical Tanker Type 2 & 3; Oil Tanker F.P. ≤ 60°C; Great Coastal Service; ESP.

The vessel is designed for the transportation of Type II and Type III chemicals as well as refined petroleum products with flash points below 60°C. Fully compliant with domestic coastal trading requirements, she provides a safe, reliable, and efficient solution for the loading, transfer, and transportation of hazardous liquid cargoes.

Key Features

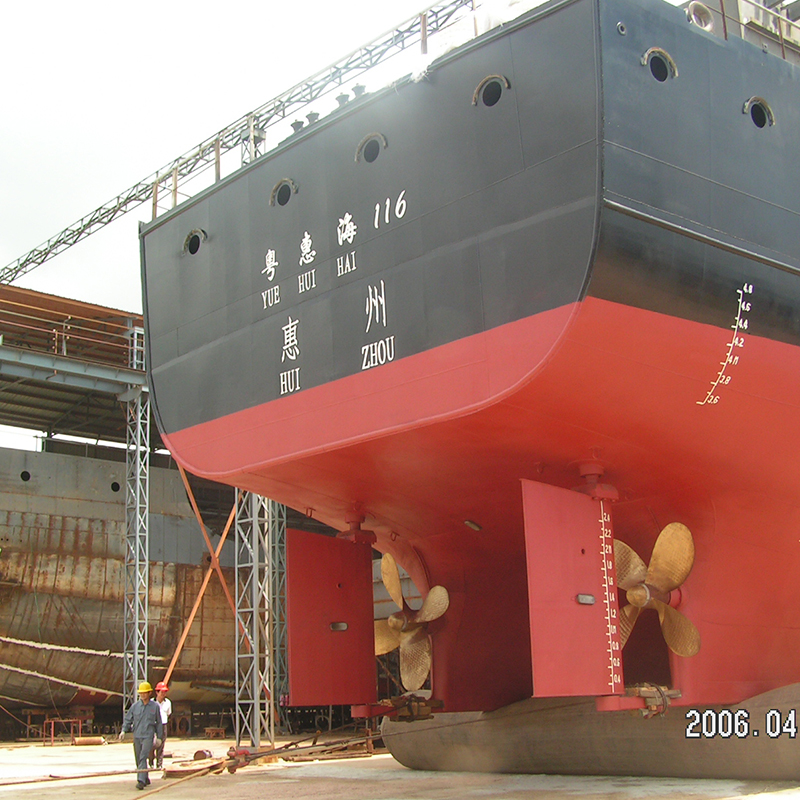

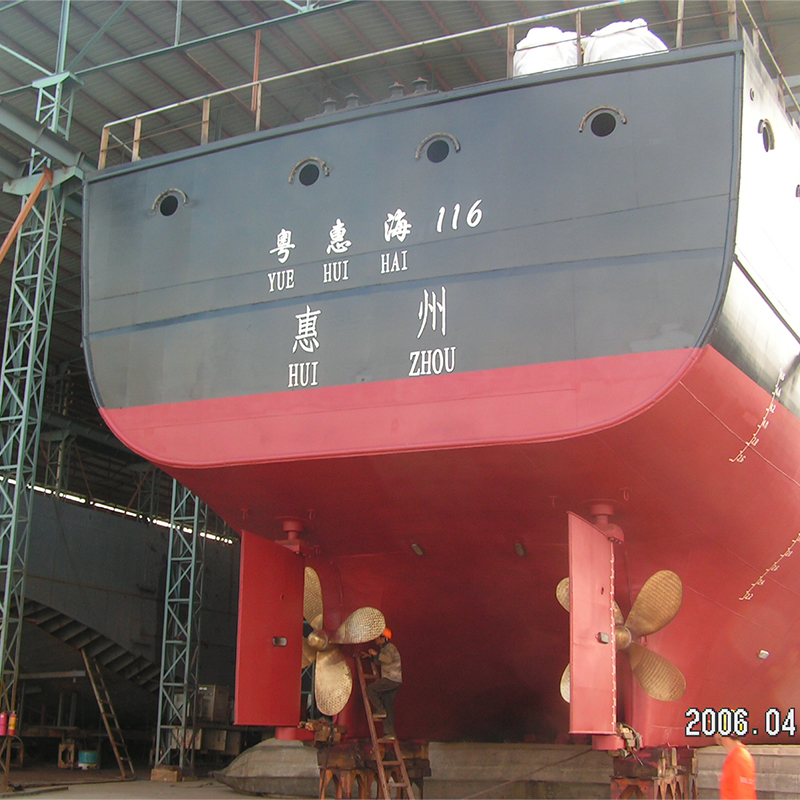

Twin-Engine, Twin-Screw Propulsion

Equipped with two independent main engines and propulsion systems, the vessel offers excellent maneuverability, enhanced operational reliability, and built-in propulsion redundancy.

Reliable Power Supply

The combination of main generator sets and harbor generator sets ensures continuous electrical power during both navigation and port operations.

Professional Cargo Handling System

Fitted with twin screw cargo pumps and stripping pumps, together with 304L stainless steel cargo piping, featuring explosion-proof and anti-static protection for safe chemical handling.

Comprehensive Safety Systems

The vessel is equipped with a complete range of safety systems, including:

· CO₂ fixed fire-extinguishing system

· Deck foam fire-fighting system

· Oily water separator

· Emergency fire pump system

· Remote quick-closing valve system

Robust Construction Standards

Built in accordance with CCS Rules and CSQS Shipbuilding Quality Standards, the vessel features a strong and durable hull structure designed for long-term service reliability.

Efficient and Cost-Effective Operation

A well-planned machinery arrangement and highly standardized equipment simplify maintenance procedures, reduce downtime, and lower lifecycle operating costs.

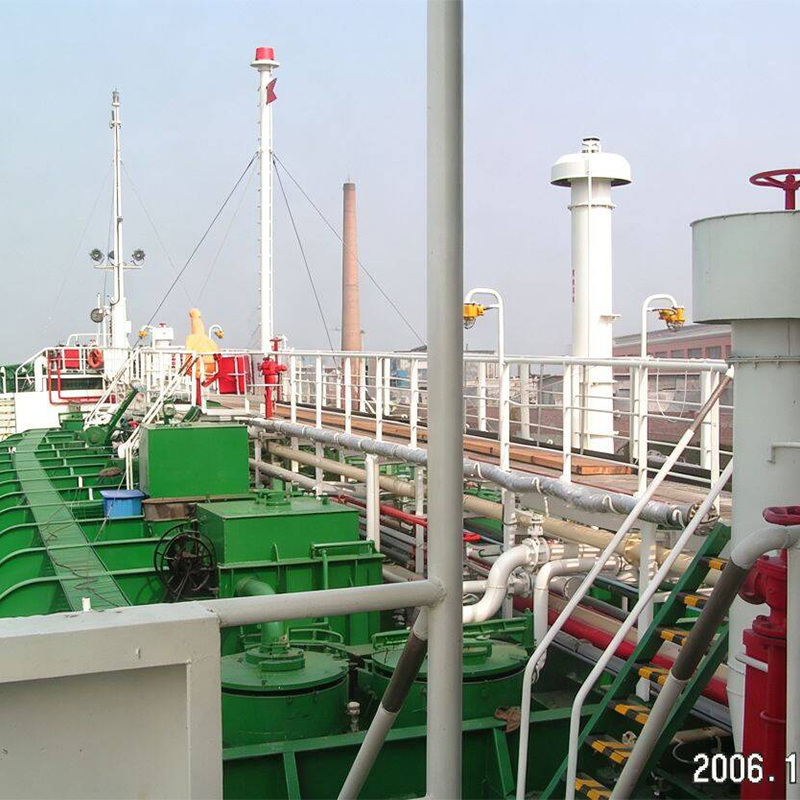

Piping Arrangement

Wheelhouse

Connecting Bridge

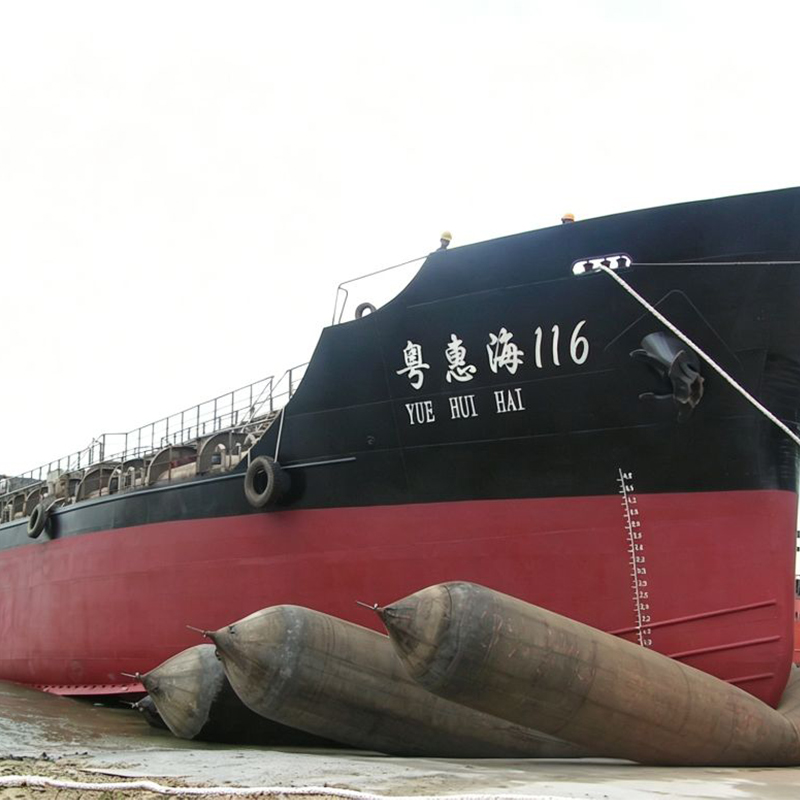

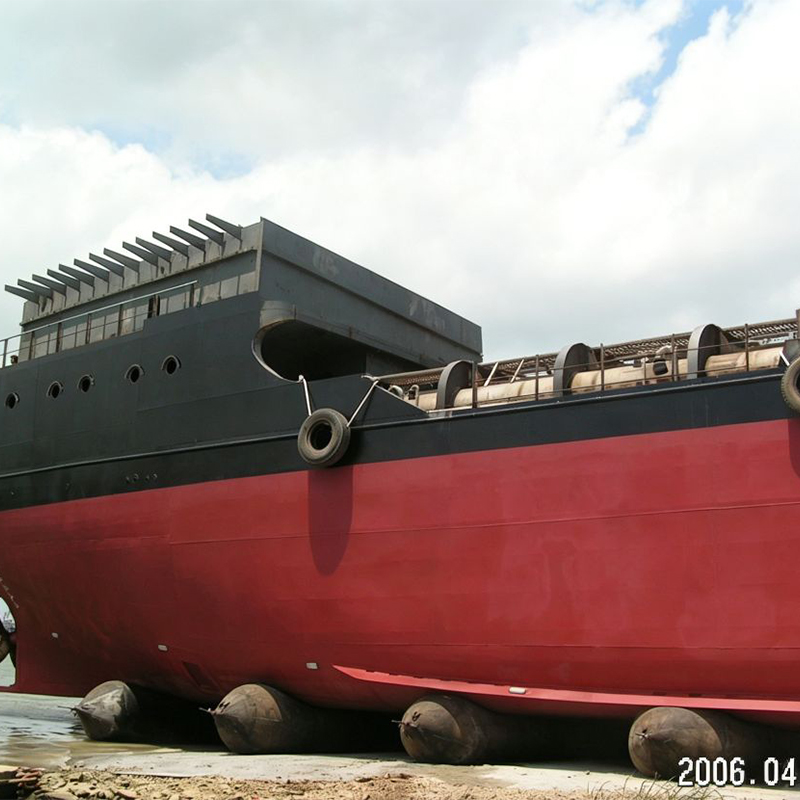

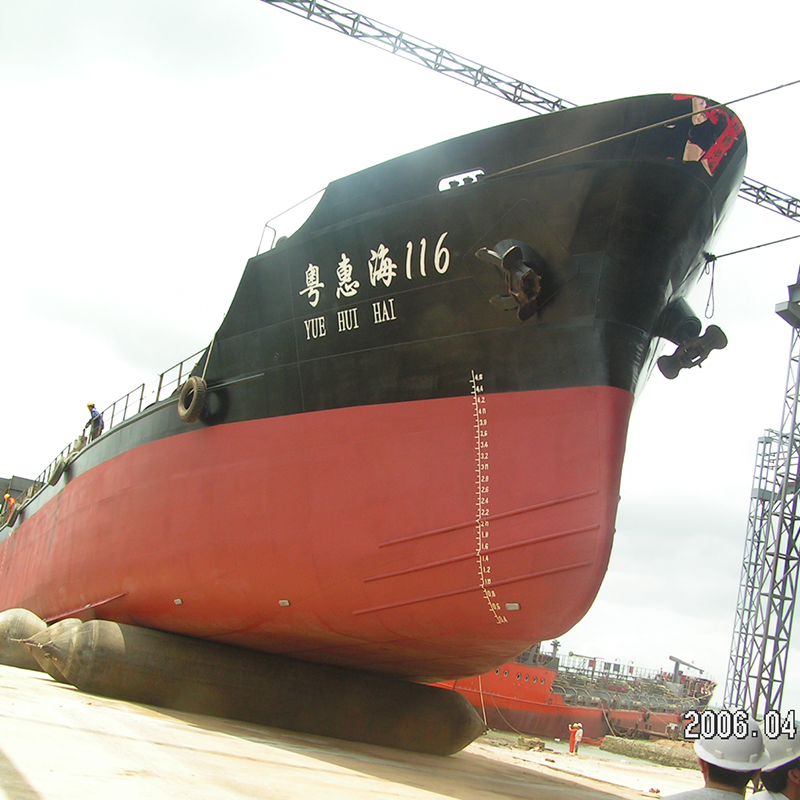

Launching
