SHEN HUA 631

Length Overall 79.8m
Breadth 12.5m
Depth 5.20 m
Design Draft 4.65m
Cargo Tank Capacity 2600m³
Dead weight (DWT) 2500 tonnes
Main Engine Model 6320ZCd－4
Main Engine Power 1324kW
Rated Engine Speed 500 rpm
Quantity of Main Engines 1
Speed 11.5 knots
Fuel Oil Tanks Capacity 100 tonnes
Complement 13 persons
Service Area Coastal Waters

Product Details

goods_content

Vessel Introduction

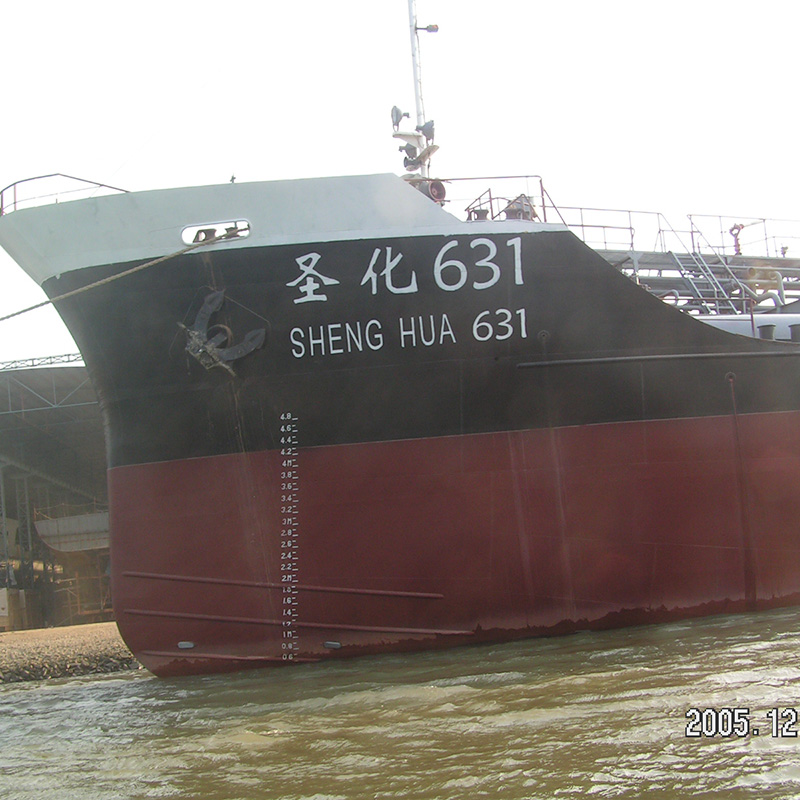

SHENG HUA 631 is a 2,600m³ single-engine, single-screw coastal chemical tanker designed and built in accordance with the latest requirements of the China Classification Society (CCS).

Class Notation:
★CSA5/5 Chemical Tanker, Type 2 & 3; Oil Tanker F.P. ≤ 60°C; Great Coastal Service; ESP.

The vessel is designed for the transportation of Type II and Type III bulk chemicals and refined petroleum products with flash points below 60°C. Fully compliant with domestic coastal shipping regulations, she is a reliable and efficient solution for short- and medium-distance transportation of hazardous liquid cargoes.

Key Features

CCS Classed and Fully Compliant

Designed and built in accordance with the latest CCS Rules and domestic maritime regulations, ensuring safe and compliant operation in coastal waters.

Reliable and Economical Propulsion

Powered by a 1,324 kW 6320ZCd-4 main engine, integrated with a dedicated gearbox and shafting system, delivering dependable propulsion performance, fuel efficiency, and excellent suitability for coastal trading operations.

Continuous Power Supply

Equipped with two 90 kW main generator sets and a 50 kW harbor generator, ensuring uninterrupted electrical power during both navigation and port operations.

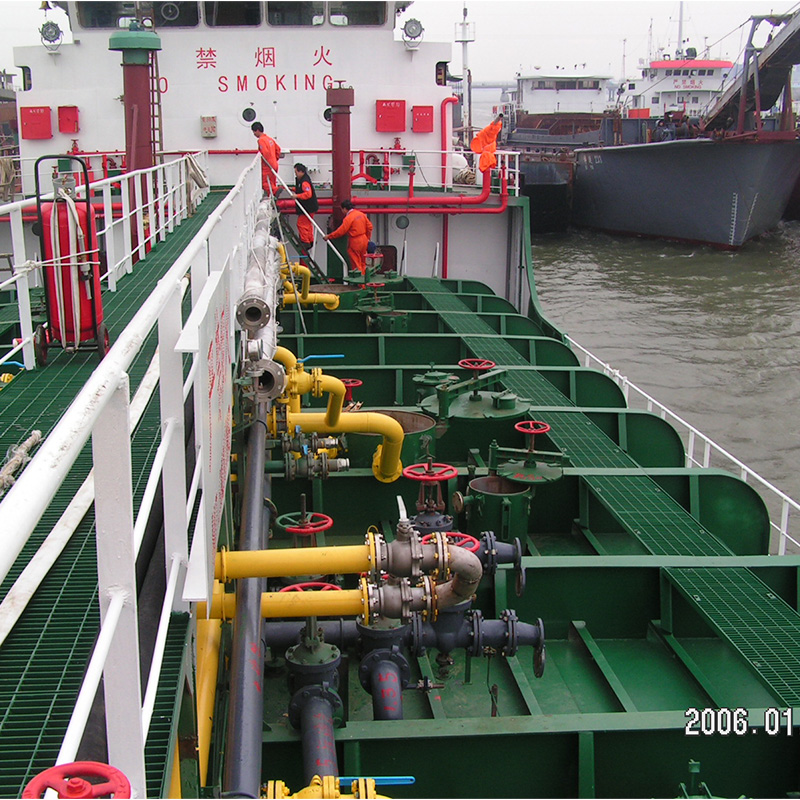

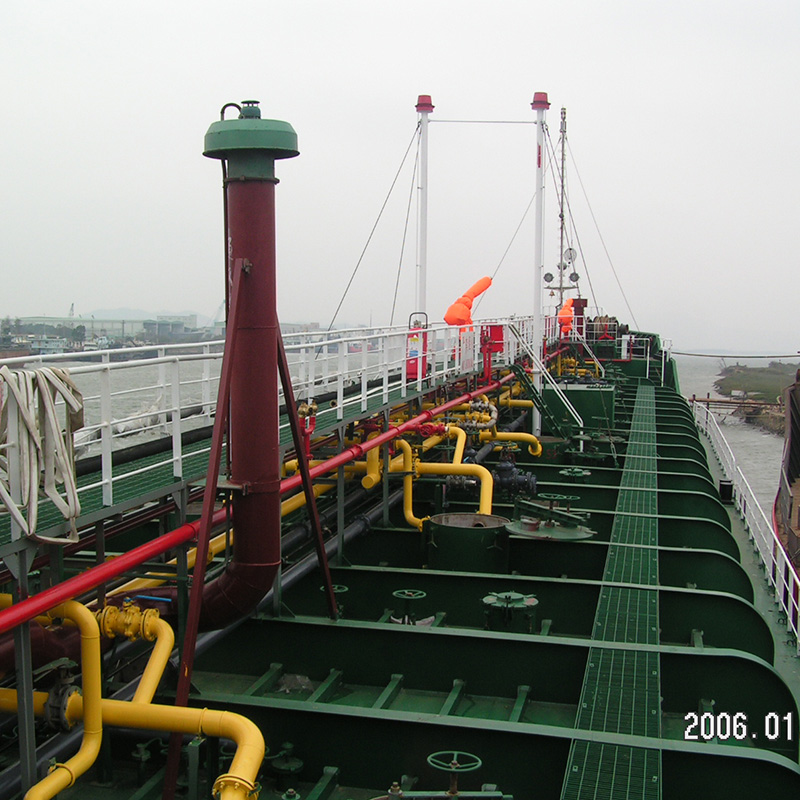

Efficient Cargo Handling System

The vessel features twin screw cargo pumps and a stripping pump system, providing efficient loading and unloading operations. The entire cargo piping system incorporates explosion-proof and anti-static protection, meeting the demanding requirements of chemical transportation.

Comprehensive Safety Systems

A complete range of safety equipment is installed, including:

· CO₂ fixed fire-extinguishing system

· Deck foam fire-fighting system

· Explosion-proof ventilation system

· Anti-static grounding system

· Cargo level, temperature, and pressure alarm systems

Low Maintenance and Cost-Effective Operation

The machinery spaces are efficiently arranged with highly standardized equipment, simplifying maintenance procedures, reducing operating costs, and ensuring maximum operational availability.

Mess Room

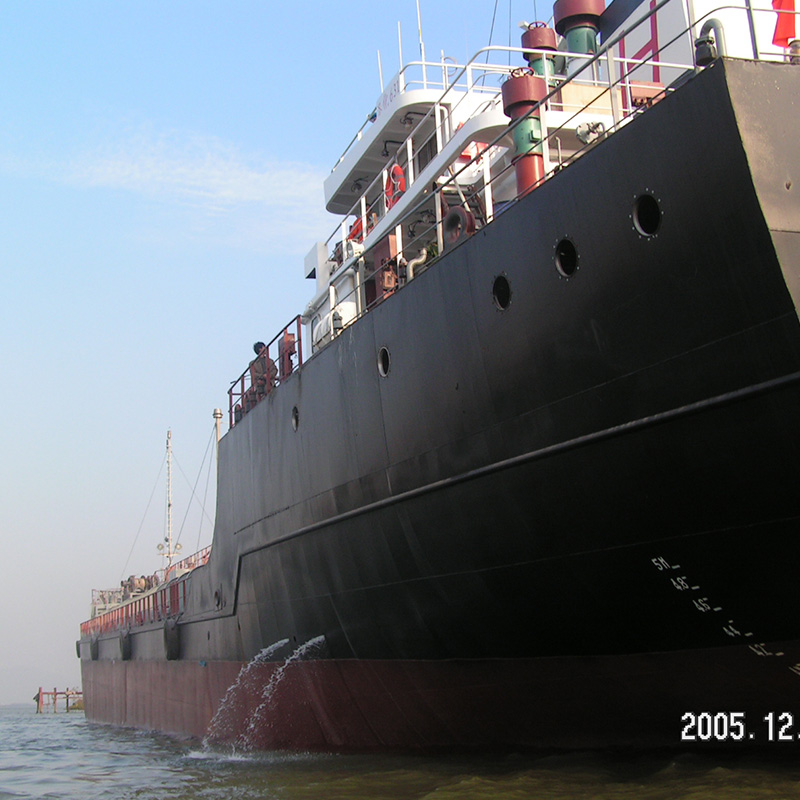

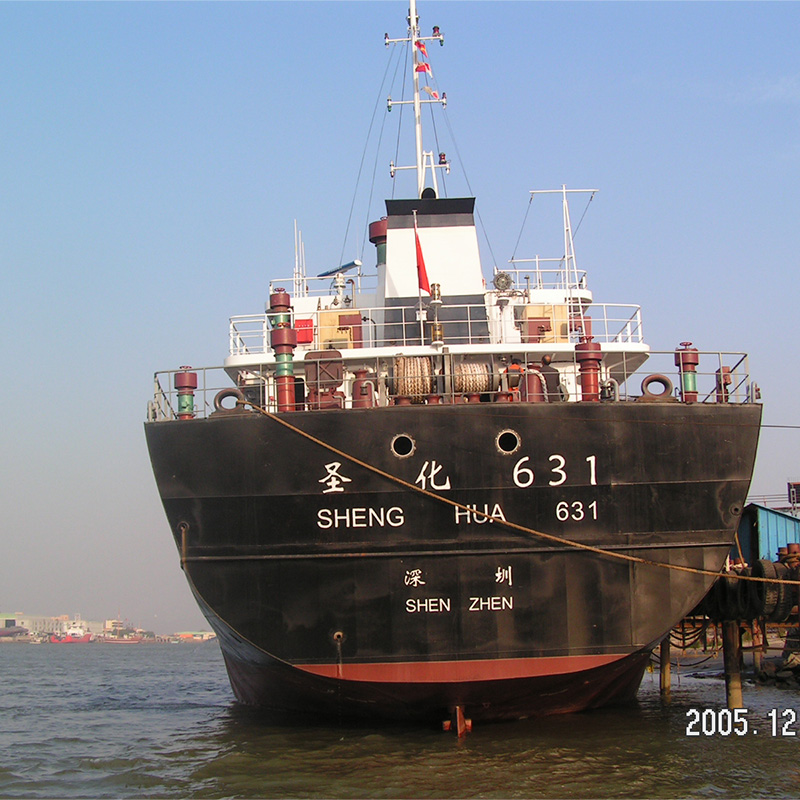

Stern

Crew Cabin

Engine Room

Wheel Console

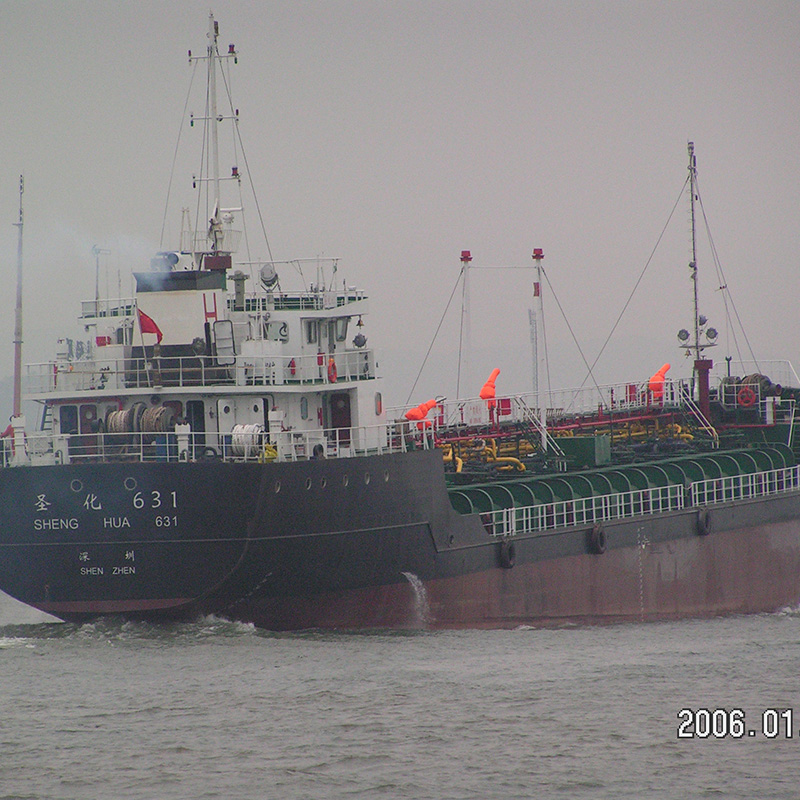

Sea Trial
